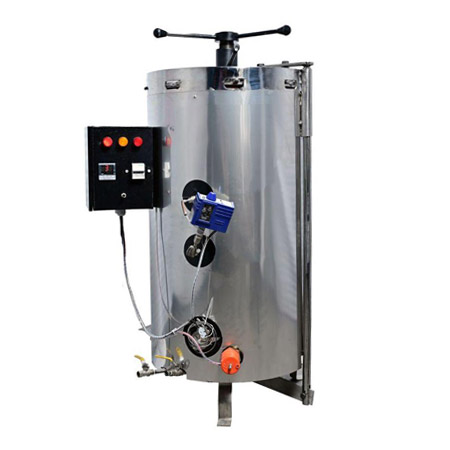

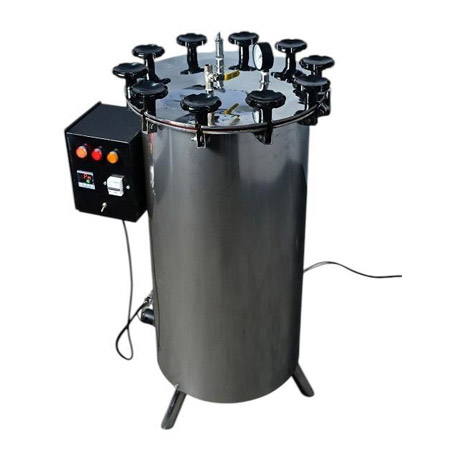

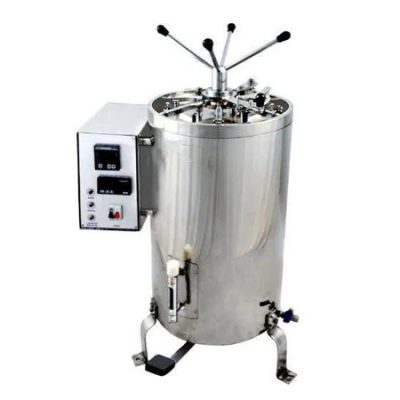

Vertical Cylindrical Autoclave

Compact GMP-compliant vertical autoclave with digital control, SS 316 chamber, and automatic sterilization cycle—ideal for small-scale hospital and lab applications.
VERTICAL-AUTOCLAVE
VERTICAL-AUTOCLAVE-2
VERTICAL-AUTOCLAVE-3

Vertical Cylindrical Autoclave

Vertical Autoclave Automatic GMP Model

Capacity:  81 Liters Approx
Size: 16” Dia X 24” Depth
Shape: Vertical Type

Working Parameters:

Chamber Working Pressure: 1.2 Kg/Cm2
Chamber Working Temperature:  121 °C

Material Of Construction:

Chamber Make: SS 316  Garde Sheet
Jacket Make: SS 304  Grade Sheet

Highlights

  • Digital Touch Pad Screen display.
  • Universal analog inputs.
  • Settable log/sterilization time interval.
  • Automatic phases handled Chamber Steam controlling, temp maintaining, sterilization time holding.
  • Auto Control Limited to: Steam Temperature 121° C and corresponding pressure maintained through the sterilization period & Sterilization Hold time maintain as per set point entered by User.
  • Indication Buzzer Lites Switch to show the Start – End – Sterilization phase during the cycle.
  • Water fill up and Drain is to be Manual.
